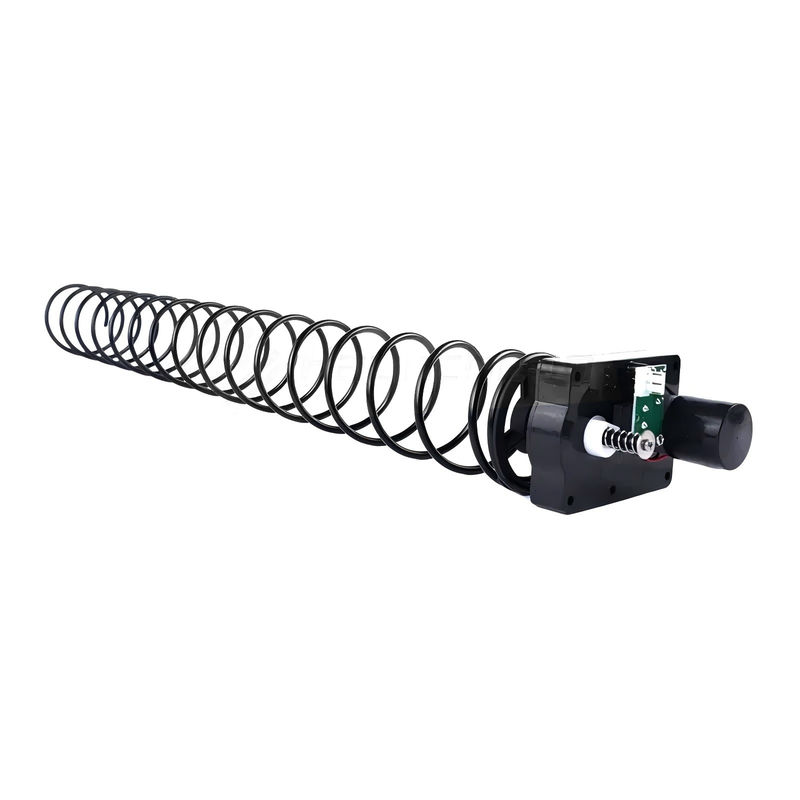

12V/24V Vending Machine Gear Motor For Spiral Spring

12V/24V Vending Machine Gear Motor For Spiral Spring

  • 12V/24V Vending Machine Gear Motor For Spiral Spring
12V/24V Vending Machine Gear Motor For Spiral Spring
Product Details:
Place of Origin: China
Brand Name: Micron
Certification: CE
Model Number: Vending Machine Gear Motor
Payment & Shipping Terms:
Minimum Order Quantity: plz contact us
Price: plz contact us
Payment Terms: T/T
Contact Now
Detailed Product Description
Highlight:

24V Vending Machine Gear Motor

,

Spiral Spring Vending Machine Gear Motor

,

12V Vending Machine Gear Motor

Technical Parameters

  • Rated Voltage: 12VDC/ 24VDC
  • No-load Speed: 23.5±3RPM
  • No-load Current: ≤0.18A
  • Stall Current: ≤1.35A
  • Max Output Torque: ≥48kg.cm. High torque type: ≥60kg.cm
  • Output Rotate Direction: CCW/CW ( Face to turnplate)


  1. High torque, 40% comparatively higher than similar products on the market.
  2. Long life: At the conditions 24VDC, environment temperature 20℃±3℃, CW running 30 seconds, with 10 seconds stop interval in a cycle, accumulate operation more than 80000 circles, gear motor is effective.
  3. Approved by CE testing.
