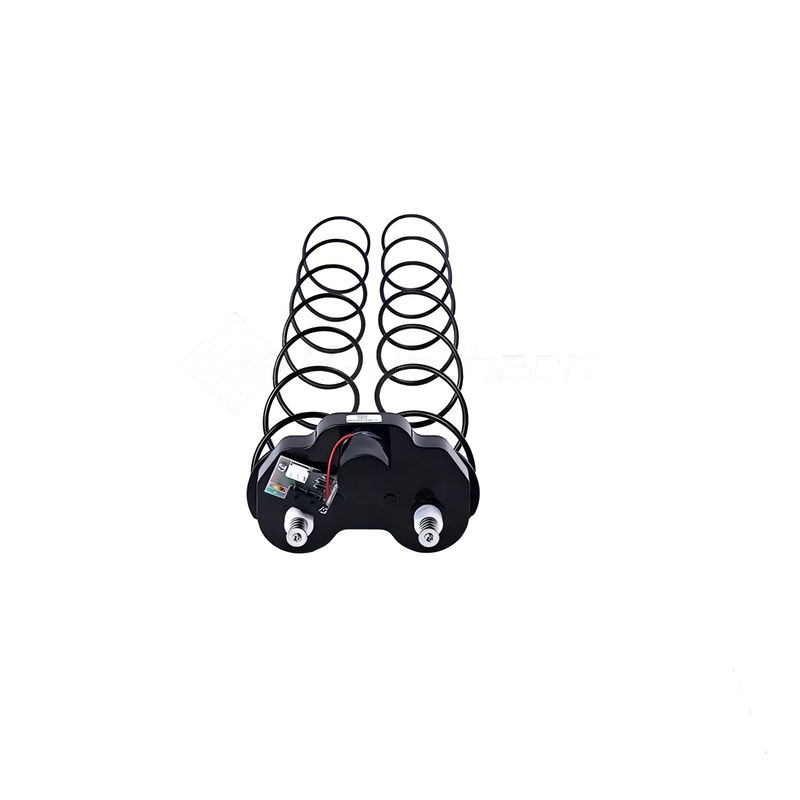

12V/24V Vending Machine Double Gear Motor Spiral Spring

12V/24V Vending Machine Double Gear Motor Spiral Spring

  • 12V/24V Vending Machine Double Gear Motor Spiral Spring
12V/24V Vending Machine Double Gear Motor Spiral Spring
Product Details:
Place of Origin: China
Brand Name: Micron
Certification: CE
Model Number: Vending Machine Gear Motor
Payment & Shipping Terms:
Minimum Order Quantity: plz contact us
Price: plz contact us
Payment Terms: T/T
Contact Now
Detailed Product Description
Highlight:

Double Gear Motor Spiral Spring

,

Vending Machine Motor Spiral Spring

Technical Parameters

  • Rated Voltage: 24VDC
  • No-load Speed: 23.5±3RPM
  • No-load Current: ≤0.18A
  • Stall Current: ≤1.35A
  • Max Output Torque: ≥48kg.cm
  • Output Rotate Direction: Face to wheel, put the small side of the case upward


This gear motor is a next-generation product, designed and manufactured based on existing market models with significant enhancements. A key feature is its three-pin socket on the circuit board, allowing for seamless integration. Each unit undergoes a thorough inspection to ensure high performance, superior quality, exceptional stability, and cost-effectiveness.

Highly popular among clients, this model has received excellent feedback. It features three PCB pins—positive, negative, and signal. While operating, the control board receives real-time feedback from the signal line, confirming whether the product has been successfully dispensed.

The wheel center distance is 74.6mm, with an alternative version available at 110mm—please refer to our 210 series for more options.
